Our Solutions

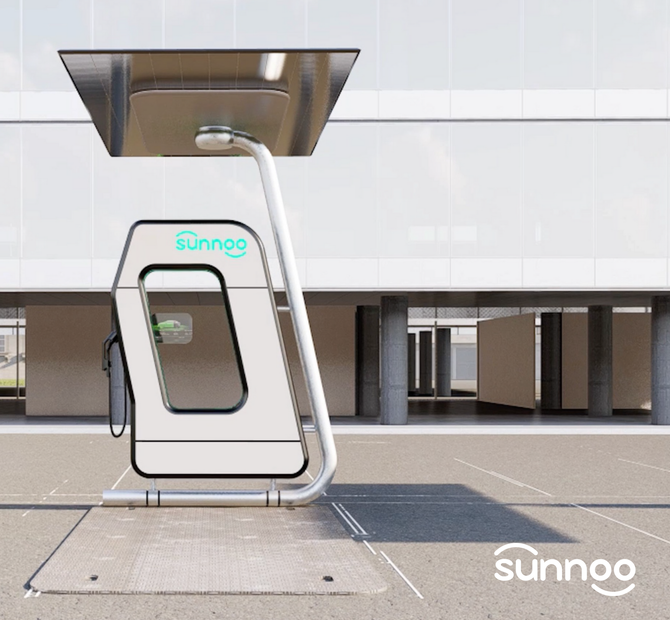

Sunnoo’s Electric Vehicle Charging Station / Adaptive Power Unit addresses the growing obstacle to purchasing electric vehicles – ”range anxiety” – while reducing the global reliance on fossil fuels to power otherwise eco-friendly transportation solutions.
Performance Specs
- Solar Array Power Production: Bifacial 5kWp
- Battery Storage: 24, 48, 96kWh LfeP battery
- Daily Range Charge: 350 electric miles
- EV Charge plug: level 2 plug – NACS or J1772
- AC plug options: 220v 30 amp / 120v 20 amp / USB connections
Technical Specs
- Array dimensions: 20 ft x 8 ft
- Max Height: 16 ft
- Minimum working clearance: 8 ft
- Base Plate: 16 ft x 8 ft
- Weight: <12,000 lbs
- Surface Load: <9 psi
- Transport dimensions: 20 ft x 8 ft x 32 inches
- Solar Tracking Obstacle Avoidance: Sonic
- User Interface: Touch screen / Mobile App Data Monitoring
- Solar deck tracking: 360 degree X & Y axis single motor tracking to accommodate any base placement
MSRP: $60,000

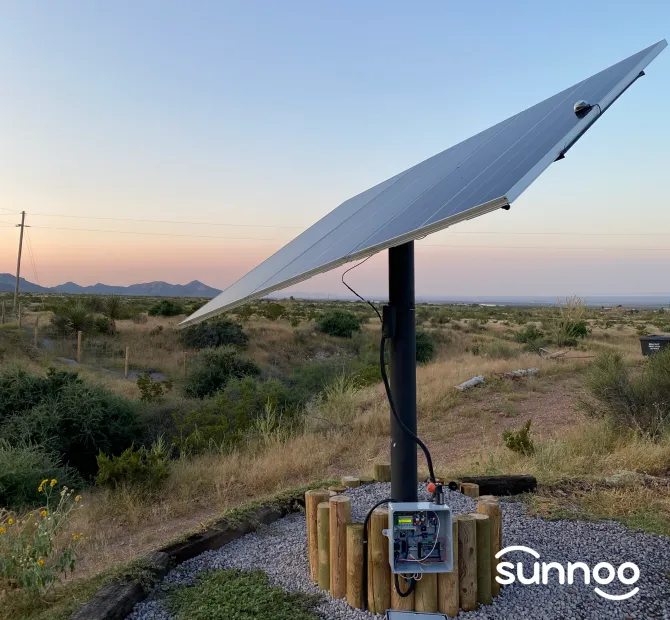

Sunnoo’s Patented Solar Tracking Turret System delivers revolutionary innovation to solve for years of inefficient energy capture. Our unique Turret System follows the sun from dawn to dusk with an industry-leading 360-degree range of motion.
Technical Specification
- Solar Deck upto 250 sq ft w/ universal panel hardware
- 360 degree X & Y axia single motor tracking for easy of install
- Program controlled Stepper Motor control for precise tracking
- MPPT controlled tracking system for maximum solar light capture
- Mobile App Data Monitoring
- Lifetime no maintenance Tapered roller Bearing
- Mounting via 8 bolt plate to concrete ballast, Helical Anchor, or post in concrete.
MSRP: $5,400.00 per unit
Our EV Charging Solution
Solar Array Charging Production
6kw
Battery Storage
60, 80, 100 kWh LfeP battery
Daily Range Charge
60, 80, 100 kWh LfeP battery
EV Charge Plug
level 2 plug J1772 / level 3 CCS/Chademo
AC Plug Options
220v 30 amp / 120v 20 amp / USB connections
Solar Deck Tracking
360 degree X & Y axis single motor tracking to accommodate any base placement
